Let me know how the gel-pad goes. After 73k I'm actually thinking of doing something with the Connie's seat - it has done well hauling my butt around for so long (there got in before anyone else I hope).
Under the cover, if you want the stock shape you just take out some of the foam and glue it there, if you want it raised, you just glue it to the top part of the foam, and cover with new vinyl, or the old stuff again if you're a cheap ass!
"A shark on whiskey is mighty risky, but a shark on beer is a beer engineer" - Tad Ghostal
I have been importing and using "memory" foam for over 18 years and non liquid gel for a couple of years.
Memory foam is known as visco-elastic foam and is great stuff but does go quite firm when cold (If we need to grind small pieces to shape we sometimes chuck them in the freezer first) but will soften again pretty quickly with body heat. There are a couple of brands that say they don't go hard when cold, we've tried them but have found the difference to be so marginal as to be not worth changing suppliers.
Impact gel, and the like, is great stuff but can be quite cold on the bum. We tend to put a 12mm layer of visco-elastic foam over it to make it more comfortable temperaturewise.
Whether either of these is going to to be suitable depends on the type of bike you have and and what kind of riding you do. I have a naked sports bike which I use for back road scratching rather than long tours. I have tried both on my seat and have found them too soft for my needs. Instead I have used a firm base layer (much of it original seat foam) and an upper layer of high resilience, medium density urethane foam.
I never get a sore bum and I can still move around the seat easily. On this subject, particularly if you ride a sports bike, beware of grippy vinyls. They can make it damn near impossible to move on the seat when you want to. Great on a dirt bike but not good for a road bike.
We do have some sample pre-cut gel pads for motorcycle seats which we are evaluating as an agency. Details shortly.
"Twilight's like soccer. They run around for two hours, nobody scores, and a billion fans insist you just don't understand"
Made a start on it this arvo. Had to hack into the existing seat foam around the sides to the gel layer would stay flush with the bodywork, but with a gel layer on top, you don't have to go super smooth when cutting the foam! I lifted the front bit of the gel 12.5mm (+12.5mm of gel) for a 25mm raise at the front, and just the 12.5 at the rear. Should make braking nicer on me plums.
Still have to fabricate some extra bits for the front (seat doesn't quite line up how it needs to) so hopefully it'll plastic weld... Then put some foam on those bits, smooth it out, take some pics, add vinyl, done!
"A shark on whiskey is mighty risky, but a shark on beer is a beer engineer" - Tad Ghostal

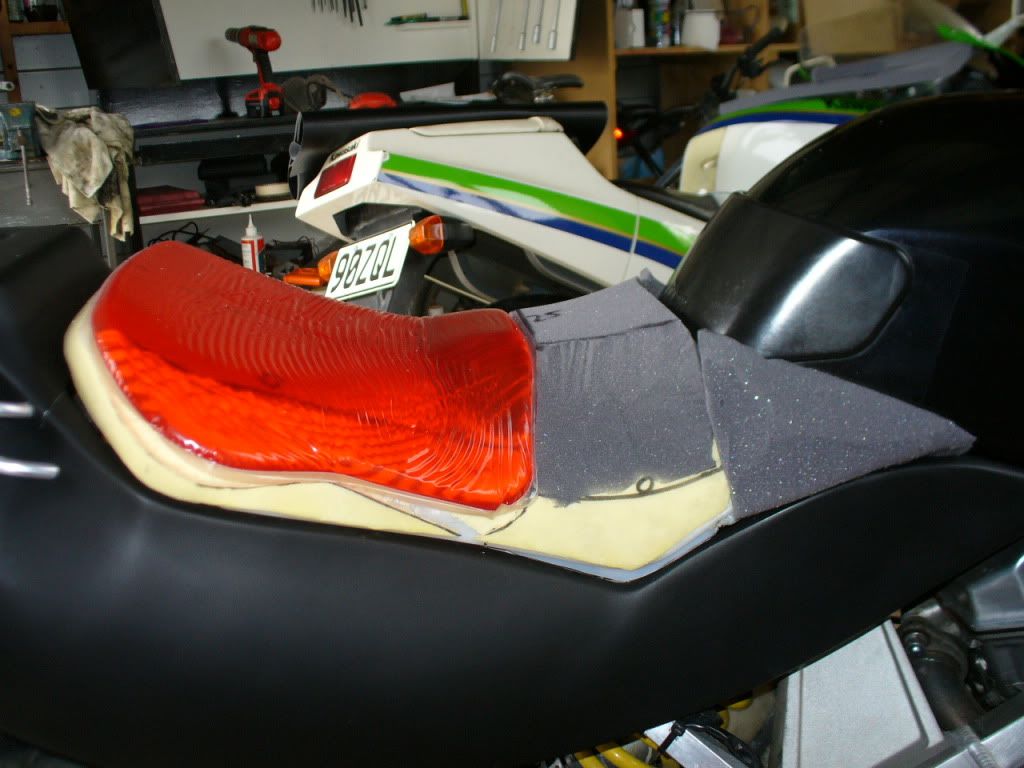

Got it installed today. Pic before grinding foam to shape, and one after putting vinyl on top.
Vinyl fit looks like arse (as opposed to the more desirable, vinyl fitting my arse), so will redo next time I'm at the parents, as Mum has a sewing machine so will make it out of three panels as it needs to be. Borrowed an almost usless stapler which didn't help my temperbout half the time it lodged them in enough so I could bash them through with a hammer, made it hard to difficult to put much tension on the vinyl though.
"A shark on whiskey is mighty risky, but a shark on beer is a beer engineer" - Tad Ghostal
Would it help to heat it gently is whilst you pull it taught, when you get your hands on another stapler?
But is it cumfy?
"A shark on whiskey is mighty risky, but a shark on beer is a beer engineer" - Tad Ghostal
How is that seat working out? Have you had a chance to sort out the cover?
I got some of that foam/gel off trumpy. Maybe this winter I can get the blasted seat done.
