Page 8 of 20 FirstFirst ... 67891018 ... LastLast
Results 106 to 120 of 300

Thread: Ask an Engineer

  1. #106
    Join Date
    20th January 2010 - 14:41
    Bike
    husaberg
    Location
    The Wild Wild West
    Posts
    12,187
    Quote Originally Posted by Ocean1 View Post
    Briefly. They seemed to have more issues with cams than cranks.
    these bits one was the BSA and the other was the Megacycle fix for the yams both the same way i think
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	cam welded.JPG
Views:	11
Size:	351.2 KB
ID:	276378   Click image for larger version.

Name:	cam welded 2.JPG
Views:	16
Size:	249.0 KB
ID:	276379



    Kinky is using a feather. Perverted is using the whole chicken

  2. #107
    Join Date
    24th July 2006 - 11:53
    Bike
    KTM 1290 SAR
    Location
    Wgtn
    Posts
    5,541
    Quote Originally Posted by husaberg View Post
    these bits one was the BSA and the other was the Megacycle fix for the yams both the same way i think
    The BSA cam is steel, they've made a very heavy jig and TIG welded it.


    The Megacycle cams in the pic look to be CI, they say "two lobes have been moved and hard welded in the new position".
    The only "hard welding" I know about wouldn't be used to weld a shaft together, it'd be used to build up a lobe for re-grinding.
    Go soothingly on the grease mud, as there lurks the skid demon

  3. #108
    Join Date
    17th July 2005 - 22:28
    Bike
    Dougcati, Geoff and Suzi
    Location
    Banjo town
    Posts
    10,162
    Quote Originally Posted by Ocean1 View Post
    It's quite possible a mild shrink fit on the sleeve would hold the torsional load, but I wouldn't trust it. Oldham couplers would be nice, if yo ucould buy them off the shelf, (fair bit of work to make) and if you had room to swing them. You dont. The simplest way to form a mechanical drive that'll fit in there is to pin a sleeve radially through the shafts both sides of the joint. I'd use taper pins, nominal dia about 5mm. Pre-assemble the shaft and check run-out and timing before reaming for pins.

    All you need to do that is a lathe and a drill press, easy. I've got taper reamers if you decide to go that way. And pins.
    Bummer, I expected the oldhams to be "relatively" straight forward.
    Mr Bogan, do you reckon you can manage the idea Ocean1 has mentioned here? If so, I may have to send some cams your way

    Quote Originally Posted by Ocean1 View Post
    What diameter is the shaft at the join? And what clearance does the standard shaft have from the oil runner?
    Will get the measurements next week, still 450km away from the bike

    Quote Originally Posted by pete376403 View Post
    Bore through the centre of the camshaft, cut the shaft and put a spigot inside, give it a decent chamfer then bronze the thing back together in correct alignment

    H-D did this with the rocker shafts on the original XR750 motors to get the angles right after shortening the 883 cylinders, so it's not like it's never been tried
    Don't quote me on this yet, but I think the ZX6/ZZR runs a hollow cam, but not for oil like Hondas of the era. This, to my noob head, seems like a good idea.

    I found those links last night after much trawling. I may be getting a little obsessed with this...

    Quote Originally Posted by Brian d marge View Post
    Im worried about the loading , while its not reversed it is repeated and again while the movement isn't big , the frequency is high and fatigue may be an issue, as well as the interference fit remember it will be running around 100 deg c more or let , which will affect any interference fits
    the last idea with the bronze with a sleeve seems the most sturdy , but until you have an idea of the loading .....

    Do a free-body diagram , then a loading diagram this will help you making a decision,

    just my concerns

    Stephen
    Cheers Stephen
    I... errr... have no idea what these diagrams are, moar google for me!

    Edit:
    I really like the simplicity of Ocean1s idea, I think I'll have to get the measurements done, then look at it
    The biggest issue I'm seeing here is I need to cut it where the locating ring is on the exh cam.
    Will have to see how much clearance there is and if the sleeve can be made with the raised thingy in it
    This shows the bit I'm waffling about http://img91.imageshack.us/img91/3116/dscf0891.jpg

    The intake side has it on the gap between 1 & 2, so no issue there
    Quote Originally Posted by Paul in NZ View Post
    Ha...Thats true but life is full horrible choices sometimes Merv. Then sometimes just plain stuff happens... and then some more stuff happens.....




    Alloy, stainless and Ti polishing.
    Bling your bike out!
    PM me

  4. #109
    Join Date
    20th January 2010 - 14:41
    Bike
    husaberg
    Location
    The Wild Wild West
    Posts
    12,187
    Quote Originally Posted by ducatilover View Post

    I found those links last night after much trawling. I may be getting a little obsessed with this...

    Cheers Stephen
    I... errr... have no idea what these diagrams are, moar google for me!
    Hint....when you are searching it is often 4000% faster to use the image option?



    Kinky is using a feather. Perverted is using the whole chicken

  5. #110
    Join Date
    17th July 2005 - 22:28
    Bike
    Dougcati, Geoff and Suzi
    Location
    Banjo town
    Posts
    10,162
    Quote Originally Posted by husaberg View Post
    Hint....when you are searching it is often 4000% faster to use the image option?
    I do it a lot like that

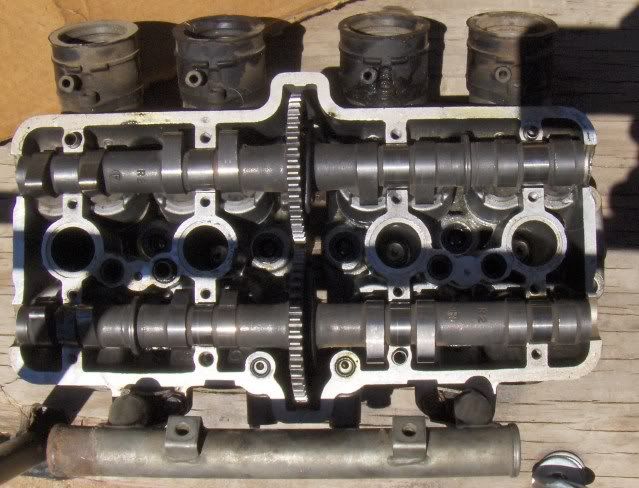

    More pics to make my silly idea even closer to reality...

    I'll look up the spec for the cam journals so we have a vague reference as to the sizes of what's in there
    Quote Originally Posted by Paul in NZ View Post
    Ha...Thats true but life is full horrible choices sometimes Merv. Then sometimes just plain stuff happens... and then some more stuff happens.....




    Alloy, stainless and Ti polishing.
    Bling your bike out!
    PM me

  6. #111
    Join Date
    25th April 2009 - 17:38
    Bike
    RC36, RC31, KR-E, CR125
    Location
    Manawatu
    Posts
    7,364
    Quote Originally Posted by ducatilover View Post
    Bummer, I expected the oldhams to be "relatively" straight forward.
    Mr Bogan, do you reckon you can manage the idea Ocean1 has mentioned here? If so, I may have to send some cams your way
    Yeh the hard bit will be the setup. Once I get em held in the lathe securely it'll be easy enough. Then again getting the setup right for pressing and pinning. You might have to buy me a boring bar though... and maybe some telescopic gauges too...
    "A shark on whiskey is mighty risky, but a shark on beer is a beer engineer" - Tad Ghostal

  7. #112
    Join Date
    17th July 2005 - 22:28
    Bike
    Dougcati, Geoff and Suzi
    Location
    Banjo town
    Posts
    10,162
    Quote Originally Posted by bogan View Post
    Yeh the hard bit will be the setup. Once I get em held in the lathe securely it'll be easy enough. Then again getting the setup right for pressing and pinning. You might have to buy me a boring bar though... and maybe some telescopic gauges too...
    I don't like buying things
    Hopefully this link works
    https://www.dropbox.com/s/g28bx6hollmo9pj/02.jpg has the journal specs
    Quote Originally Posted by Paul in NZ View Post
    Ha...Thats true but life is full horrible choices sometimes Merv. Then sometimes just plain stuff happens... and then some more stuff happens.....




    Alloy, stainless and Ti polishing.
    Bling your bike out!
    PM me

  8. #113
    Join Date
    24th July 2006 - 11:53
    Bike
    KTM 1290 SAR
    Location
    Wgtn
    Posts
    5,541
    Quote Originally Posted by ducatilover View Post
    The biggest issue I'm seeing here is I need to cut it where the locating ring is on the exh cam.
    Will have to see how much clearance there is and if the sleeve can be made with the raised thingy in it

    The intake side has it on the gap between 1 & 2, so no issue there
    Yeah, that might be a problem, the ring is about the diameter you'd want for a sleeve. If that makes it too hard to sleeve you migh need to look at an alternative, like either a dowel and braize joint or building up the lobes and getting them reground.
    Go soothingly on the grease mud, as there lurks the skid demon

  9. #114
    Join Date
    17th July 2005 - 22:28
    Bike
    Dougcati, Geoff and Suzi
    Location
    Banjo town
    Posts
    10,162
    Quote Originally Posted by Ocean1 View Post
    Yeah, that might be a problem, the ring is about the diameter you'd want for a sleeve. If that makes it too hard to sleeve you migh need to look at an alternative, like either a dowel and braize joint or building up the lobes and getting them reground.
    I wanted to avoid re-ground lobes if possible (I'm a cheap bugger)
    I suppose, because the cam seems to be hollow, I can't have it machined down quite a bit and press fitted

    What's the likelihood of a braze joint warping the cam?
    Quote Originally Posted by Paul in NZ View Post
    Ha...Thats true but life is full horrible choices sometimes Merv. Then sometimes just plain stuff happens... and then some more stuff happens.....




    Alloy, stainless and Ti polishing.
    Bling your bike out!
    PM me

  10. #115
    Join Date
    24th July 2006 - 11:53
    Bike
    KTM 1290 SAR
    Location
    Wgtn
    Posts
    5,541
    Quote Originally Posted by ducatilover View Post
    I wanted to avoid re-ground lobes if possible (I'm a cheap bugger)
    I suppose, because the cam seems to be hollow, I can't have it machined down quite a bit and press fitted

    What's the likelihood of a braze joint warping the cam?
    Similar risk to welding, you'd still want to jig up for it.

    You might want to think about hard soldering it, also. Joint prep might look like below.

    As for cost, pretty much any way it could be done would be cheaper than having the joint fail.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	cam joint.JPG
Views:	6
Size:	39.8 KB
ID:	276399
    Go soothingly on the grease mud, as there lurks the skid demon

  11. #116
    Join Date
    17th July 2005 - 22:28
    Bike
    Dougcati, Geoff and Suzi
    Location
    Banjo town
    Posts
    10,162
    What about modifying the locating groove? It's only on the oil feed and is a separate arm, there's no locating groove for the cam on the head. It could possibly be machine to accommodate a press fit sleeve with a locating ring machined on it?

    Or cut the locating groove thingy off and have another made that is bolted to the oil feed gear
    Quote Originally Posted by Paul in NZ View Post
    Ha...Thats true but life is full horrible choices sometimes Merv. Then sometimes just plain stuff happens... and then some more stuff happens.....




    Alloy, stainless and Ti polishing.
    Bling your bike out!
    PM me

  12. #117
    Join Date
    13th June 2010 - 17:47
    Bike
    Exercycle
    Location
    Out in the cold
    Posts
    5,867
    Quote Originally Posted by Ocean1 View Post
    Similar risk to welding, you'd still want to jig up for it.

    You might want to think about hard soldering it, also. Joint prep might look like below.

    As for cost, pretty much any way it could be done would be cheaper than having the joint fail.
    Cut, bore both pieces using a travelling steady to hold the long piece. The cam is hollow simply to save weight - the insert doesn't need to be anything clever, mild steel will do, and it'll silver solder too. Pin it as well. The load, while interupted, isn't actually that great - i'd point out the huge number of cam sprockets which have been slotted and are held in place very effectively with two 6mm screws...

    i disagree with the cost of failure...which ever cam breaks, the short end is going to stop with valves closed IMO...may be lucky and have no valve damage at all...If this actually works though, I'd not give a lot for the cush drive's chances in the back of the clutch.

  13. #118
    Join Date
    17th July 2005 - 22:28
    Bike
    Dougcati, Geoff and Suzi
    Location
    Banjo town
    Posts
    10,162
    So, if I run an internal one with pins/weld, would it be wise to put the pins through before brazing the joint?

    Could it even be possible to run a pinned internal rod, without weld?
    Quote Originally Posted by Paul in NZ View Post
    Ha...Thats true but life is full horrible choices sometimes Merv. Then sometimes just plain stuff happens... and then some more stuff happens.....




    Alloy, stainless and Ti polishing.
    Bling your bike out!
    PM me

  14. #119
    Join Date
    24th July 2006 - 11:53
    Bike
    KTM 1290 SAR
    Location
    Wgtn
    Posts
    5,541
    Quote Originally Posted by Grumph View Post
    Cut, bore both pieces using a travelling steady to hold the long piece. The cam is hollow simply to save weight - the insert doesn't need to be anything clever, mild steel will do, and it'll silver solder too. Pin it as well. The load, while interupted, isn't actually that great - i'd point out the huge number of cam sprockets which have been slotted and are held in place very effectively with two 6mm screws...

    i disagree with the cost of failure...which ever cam breaks, the short end is going to stop with valves closed IMO...may be lucky and have no valve damage at all...If this actually works though, I'd not give a lot for the cush drive's chances in the back of the clutch.
    Right you are gov'nor, see pic. Edit: you'd want to machine the shaft OD first.

    Quote Originally Posted by ducatilover View Post
    So, if I run an internal one with pins/weld, would it be wise to put the pins through before brazing the joint?

    Could it even be possible to run a pinned internal rod, without weld?
    With Easyflow or similar you'd make most of the length of the joint about 0.05mm clearance, with perhaps the centre 4mm of the pin size for size. Tin the pin and cam bores, lay it into a simple jig to keep it aligned and timed, heat it up to about 650c and push the lot firmly together. As long as the surfaces are tinned properly that won't move, but it takes a mere 10 minutes to cross drill and ream the assembly and fit taper pins.

    Editedit: You could probably use the same technique with the appropriate loctite instead of solder.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	cam joint R1.JPG
Views:	11
Size:	46.2 KB
ID:	276409
    Go soothingly on the grease mud, as there lurks the skid demon

  15. #120
    Join Date
    17th July 2005 - 22:28
    Bike
    Dougcati, Geoff and Suzi
    Location
    Banjo town
    Posts
    10,162
    Quote Originally Posted by Ocean1 View Post



    With Easyflow or similar you'd make most of the length of the joint about 0.05mm clearance, with perhaps the centre 4mm of the pin size for size. Tin the pin and cam bores, lay it into a simple jig to keep it aligned and timed, heat it up to about 650c and push the lot firmly together. As long as the surfaces are tinned properly that won't move, but it takes a mere 10 minutes to cross drill and ream the assembly and fit taper pins.

    Editedit: You could probably use the same technique with the appropriate loctite instead of solder.
    I think this is the nicest sounding idea so far.
    If I can pull this off, I'll have to owe you a beverage too
    Nice and simple, I like simple
    Quote Originally Posted by Paul in NZ View Post
    Ha...Thats true but life is full horrible choices sometimes Merv. Then sometimes just plain stuff happens... and then some more stuff happens.....




    Alloy, stainless and Ti polishing.
    Bling your bike out!
    PM me
