Thread: Tps screw buggered

  1. #1
    Join Date
    12th January 2010 - 21:38
    Bike
    2004 DL650 VStrom
    Location
    Auckland
    Posts
    369

    Tps screw buggered

    Hi all, I was trying to adjust the tps on my dl650. All was going well when I started tightening it up and I stripped the bottom screw. The worst part is that It's not properly adjusted and I can't undo the screw to fix it. I've tried cutting a notch in the screw but that hasn't helped. I don't think I can get an ezy out into the space.

    Any advice would be great.
    Never in the field of human conflict has so much been owed to so few by so many cheese eating surrender monkeys.
    (Winston Churchill on the French.)

  2. #2
    Join Date
    17th February 2005 - 11:36
    Bike
    Bikes!
    Location
    Christchurch
    Posts
    9,649
    Mini needle nose vice grips. Don't be a pussy about it, clamp them on extra tight, the screw is toast anyway.

  3. #3
    Join Date
    24th September 2008 - 01:32
    Bike
    a shiny new(ish) one
    Location
    Dunedin
    Posts
    3,650
    pic of where it is might help with solutions.
    try removing the top screw completely and see if that makes getting the bottom one undone any easier?

  4. #4
    Join Date
    12th January 2010 - 21:38
    Bike
    2004 DL650 VStrom
    Location
    Auckland
    Posts
    369
    Removing the top screw doesn't work. Ill try get a picture later. I really don't know how I did it this tight in the first place.
    Never in the field of human conflict has so much been owed to so few by so many cheese eating surrender monkeys.
    (Winston Churchill on the French.)

  5. #5
    Join Date
    17th April 2011 - 14:39
    Bike
    Honda VF750f.
    Location
    Nelson
    Posts
    4,330
    Quote Originally Posted by imdying View Post
    Mini needle nose vice grips. Don't be a pussy about it, clamp them on extra tight, the screw is toast anyway.
    What he said. Failing that, see if you can grind the head off and use vice grips to get the shank out.
    For a man is a slave to whatever has mastered him. Keep an open mind, just dont let your brains fall out.

  6. #6
    Join Date
    3rd October 2004 - 15:45
    Bike
    Africa Twin DCT.
    Location
    Australia 4507
    Posts
    1,450

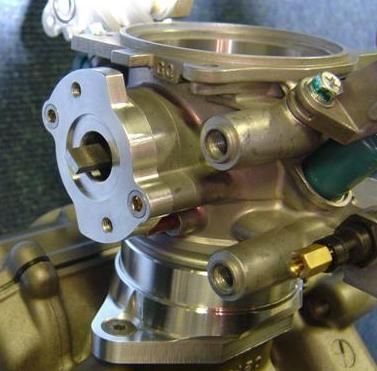

    The torx type fastener ?
    If you work on your own bike then first up is to remove them (vice grips if you have to ) and replace them with M5 ? capscrews and small flat washers so it is easy the next time.

     photo DSC02588Small.jpg

  7. #7
    Join Date
    12th January 2010 - 21:38
    Bike
    2004 DL650 VStrom
    Location
    Auckland
    Posts
    369
    Quote Originally Posted by TLDV8 View Post
    The torx type fastener ?
    If you work on your own bike then first up is to remove them (vice grips if you have to ) and replace them with M5 ? capscrews and small flat washers so it is easy the next time.

     photo DSC02588Small.jpg
    Yeah, those are the bastards. ill get some vice grips tomorrow, hopefully it will come off with those.
    Never in the field of human conflict has so much been owed to so few by so many cheese eating surrender monkeys.
    (Winston Churchill on the French.)

  8. #8
    Join Date
    12th January 2010 - 21:38
    Bike
    2004 DL650 VStrom
    Location
    Auckland
    Posts
    369
    I got the screw out. All is well with the world again. Thanks for your help. I started cutting the head off and go through one of the washers which allowed me to get it off with tiny vice grips.
    Never in the field of human conflict has so much been owed to so few by so many cheese eating surrender monkeys.
    (Winston Churchill on the French.)
