The Bucket Foundry

[Flettner]

Yes rear exhaust, sick of chamber damage.

[mr bucketracer]

nice work neal , would love to start a engine project one day

[ken seeber]

Neil,

Hats off to you. You are incredibly productive. Not just the pattern making, but the conceptual design, the detail design, the manufacturability, the actual production and the actual running of a finished project.

Just so I feel even more in awe, tell me you also have a day job !!

Superb.

Ken

[Flettner]

Neil,

Hats off to you. You are incredibly productive. Not just the pattern making, but the conceptual design, the detail design, the manufacturability, the actual production and the actual running of a finished project.

Just so I feel even more in awe, tell me you also have a day job !!

Superb.

Ken

Perhaps if I had a real job I might get more done, I own and run a small machining business, I thought that maybe when I worked for myself I might get more time to do my stuff, wrong.
At least it gives me a well equipped workshop at my disposal.

[WilDun]

Taken me months to produce a half pie furnace, thought I wasn't doing too bad and then you come up with something like this, I have always prided myself on never being envious of anyone, but this takes me to the limit I must say!

By the way, what rod are you using ( next you'll tell me you made it as well!) - Great job! .

[husaberg]

Well I have crankcase envy...........

[Flettner]

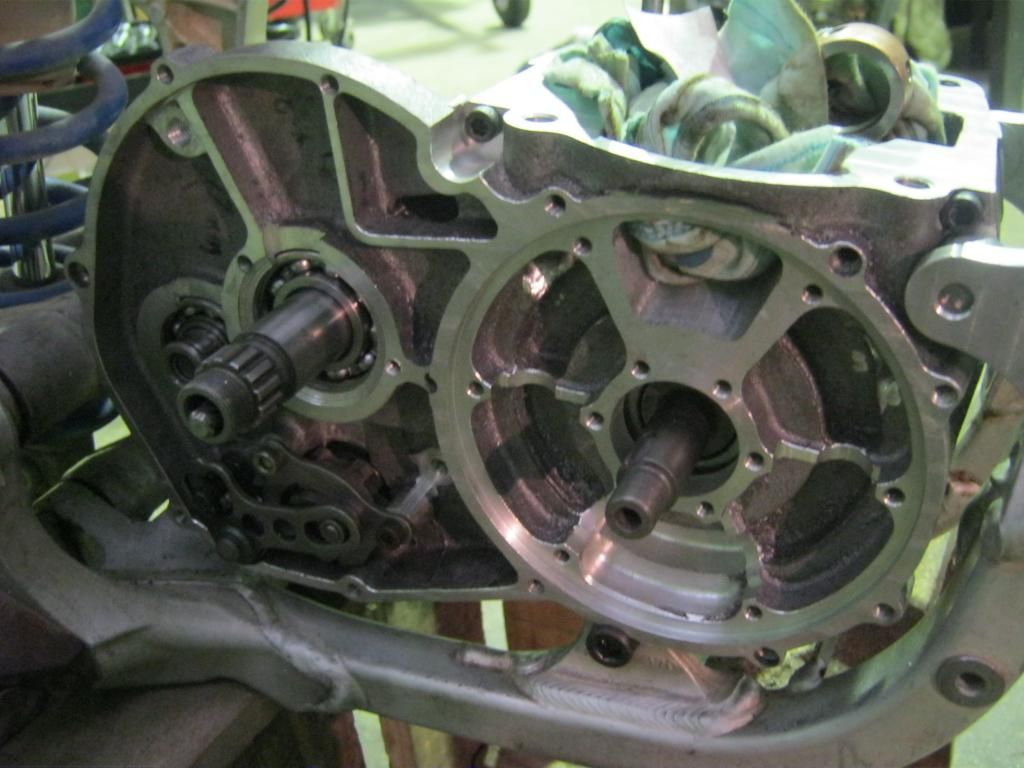

Engine in the frame, sealed up, this is the water cooled crank case, behind the rotary valve.

[Drew]

Posting more to subscribe than anything. However, a barrel for a fourstroke with a liner should be pretty easy yeah?

Bit of a water jacket and a decent surface to mount the head to would be handy for my special motor.

[husaberg]

Posting more to subscribe than anything. However, a barrel for a fourstroke with a liner should be pretty easy yeah?

Bit of a water jacket and a decent surface to mount the head to would be handy for my special motor.

Up the top next to search thread is thread tools one of the thread tools is subscribe to thread.

[Drew]

Up the top next to search thread is thread tools one of the thread tools is subscribe to thread.

Yes I know. But I also asked a question.

[husaberg]

Yes I know. But I also asked a question.

that was a question?


Neil do you have any more pics of the mold of around the crankcase entry ie the top? I could not quite figure that out from the last photo montage.

[Flettner]

Posting more to subscribe than anything. However, a barrel for a fourstroke with a liner should be pretty easy yeah?

Bit of a water jacket and a decent surface to mount the head to would be handy for my special motor.

Yes, fourstroke cylinder would be easy, to suit what head?

[Flettner]

that was a question?


Neil do you have any more pics of the mold of around the crankcase entry ie the top? I could not quite figure that out from the last photo montage.

Sorry husaberg, I'm not sure I understand what you are asking? Are talking about the rotary valve housing?

[Drew]

Yes, fourstroke cylinder would be easy, to suit what head?

VT250 head. Got that XL motor off Mike with a 250 head and slug.

[husaberg]

Sorry husaberg, I'm not sure I understand what you are asking? Are talking about the rotary valve housing?

no sorry the top where the cylinder goes with the transfer entries.

How it goes from this

to this

Am I right to guess there is another male component for the bottom of the transfers ie the curved shaft that provides the transition from the crankcase?
