    Ta for everyone who put some info here, bike has felt since yesterday like it wants to turn right at the rear tyre and two minutes on here and found a solution to get the thing lined up.

    Pot hole is my guess..
    Find out more at www.unluckyones.co.nz

  2. #17
    Join Date
    30th March 2004 - 11:00
    Bike
    2001 RC46
    Location
    Norfshaw
    Posts
    10,455
    Blog Entries
    17
    Quote Originally Posted by Oakie View Post
    That is quite remarkable! Quite cheap and fairly easy to manufacture. I might give that a crack just for a laugh. Thanks
    Almost makes me wish I didn't have a single-sided swingarm.
    Then again, if I did test the VFR's wheel alignment and it was off, I'd be rather pissed of.
    ... and that's what I think.

    Or summat.


    Or maybe not...

    Dunno really....


  3. #18
    Join Date
    5th December 2006 - 18:22
    Bike
    2000 Honda CBR600F4, RG50/GL145 Bucket
    Location
    Whitby, Wellington
    Posts
    2,009

    Don't trust the swingarm marks

    Here is the way a racer showed me. I've spent hours and hours trying different methods ... this one is quick, easy and 100% accurate

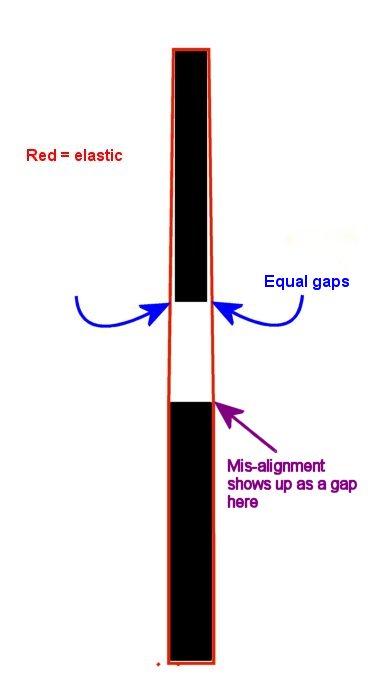

    The trick is to get a card of elastic from the super market and stretch it around both wheels. You need to make it as tight as possible so it holds a straight line. Because the back tyre is wider than the front there is a gap between the elastic. Make sure this is equal on both sides of the front tyre. Any mis-alignment will now show up as a gap between the elastic and the front edge of the rear tyre.

    It should look like this

  4. #19
    Join Date
    6th November 2006 - 10:25
    Bike
    Gixxer k7 track bike, SuperDuke Custom
    Location
    Titirangi
    Posts
    811
    Blog Entries
    1
    Quote Originally Posted by Oakie View Post
    Ouch! Yeah I had a feeling from when I was a biker in my youth that you shouldn't trust those marks without question. Cheers
    I completely agree... Don't trust the swing arm marks they are bollocks... go for the string. (Beware the "gap" method though as this allow a margin of error dependent on the back tires size).

    NOTE: you only need to do it every so often because once aligned you should just count turns on the adjusters for most chain tensioning exercisers.
    Everyone has an opinion.. mine can be found here Riding Articles

  5. #20
    Join Date
    26th February 2007 - 23:15
    Bike
    In the rubbish bin
    Location
    NZ
    Posts
    2,364
    Tried string.. I get the princple but has been a bit tricky with the four pipes and the brake stay rod and all that.

    The bike to me felt like it was leaning right at the rear.

    Haven't done enough riding at the moment to get a feel for the new adjustments. Might get someone on the CHCH WNR to have a look.
    Find out more at www.unluckyones.co.nz
